280 M2 Gym

Project Info:

ezzaninefloor.ie's client is a fitness/gym in Meath.

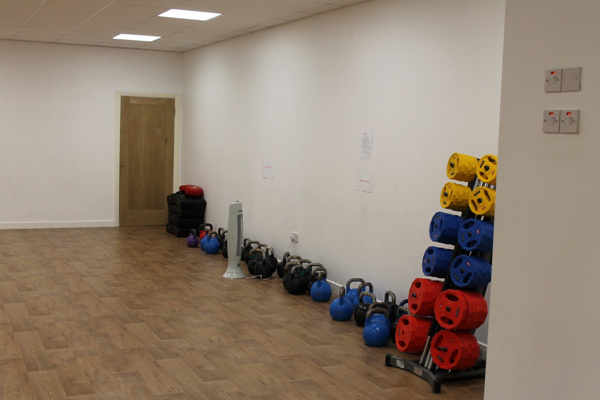

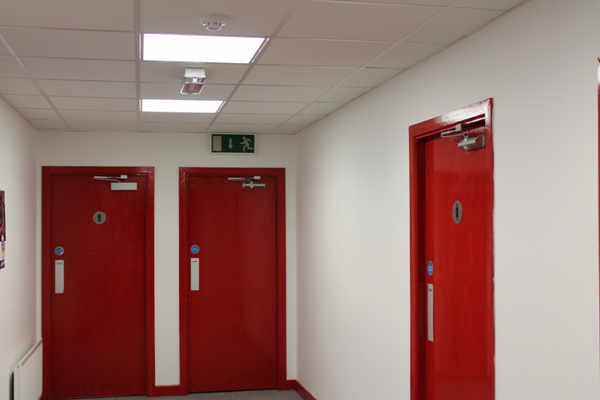

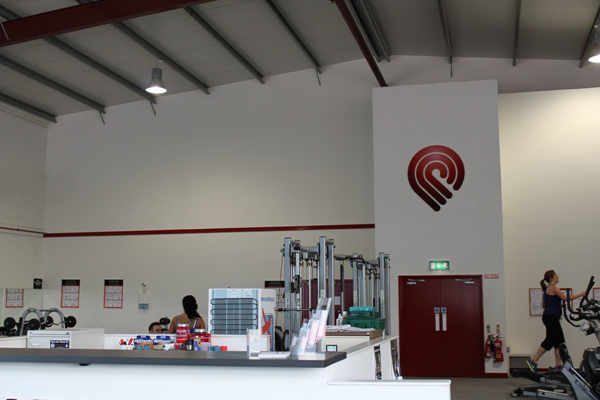

The owner of this new start-up gym in Meath contacted mezzaninefloor.ie after he had identified a premises. The premises were a shell warehouse and the client was fitting out a gym, studio, therapy rooms and changing rooms. Following a detailed discussion with mezzaninefloor.ie the owner decided to install, at initial fit-out stage, a 280 sq. metre mezzanine floor to allow for expansion.

mezzaninefloor.ie designed the floor to be installed above the facilities, with all columns hidden within the partitions. The floor was designed with a maximum permissible deflection of L/300 to minimise any “bounce” that may have occurred if the floor was used as an aerobic studio.

  • Application: Gym
  • Location: Meath
  • Size: 280 Square Metres
  • Height: 3500mm Finished Floor Level
  • Grid: To suit studio/changing room layouts
  • Loads: 4.8 kN/Sq metre
  • Accessories: Minimal Deflection
